Quiet Glide 72 in. Black Double Bi-Fold Sliding Barn Door Track and Hardware Kit

Want the rolling barn door hardware look, but have minimal space. Look no further. Bi-Fold Barn Door Hardware Kits give the pleasing aesthetic of normal barn door hardware but use only a portion of the space. It is perfect for hallway coat closets, bedroom closets, laundry closets, pantries and so much more. The hardware is easy to install, comes in 2 different mount styles and 3 different rail lengths to fit your desired space. There is also a double-door hardware option available in the 6 ft. rail length. Save space without sacrificing style by purchasing your Bi-Fold Barn Door Hardware Kit today.

• Accommodate doors 1-3/8 in. to 1-3/4 in. thick wood door
• Hardware can be installed to open to the left or to the right based on application

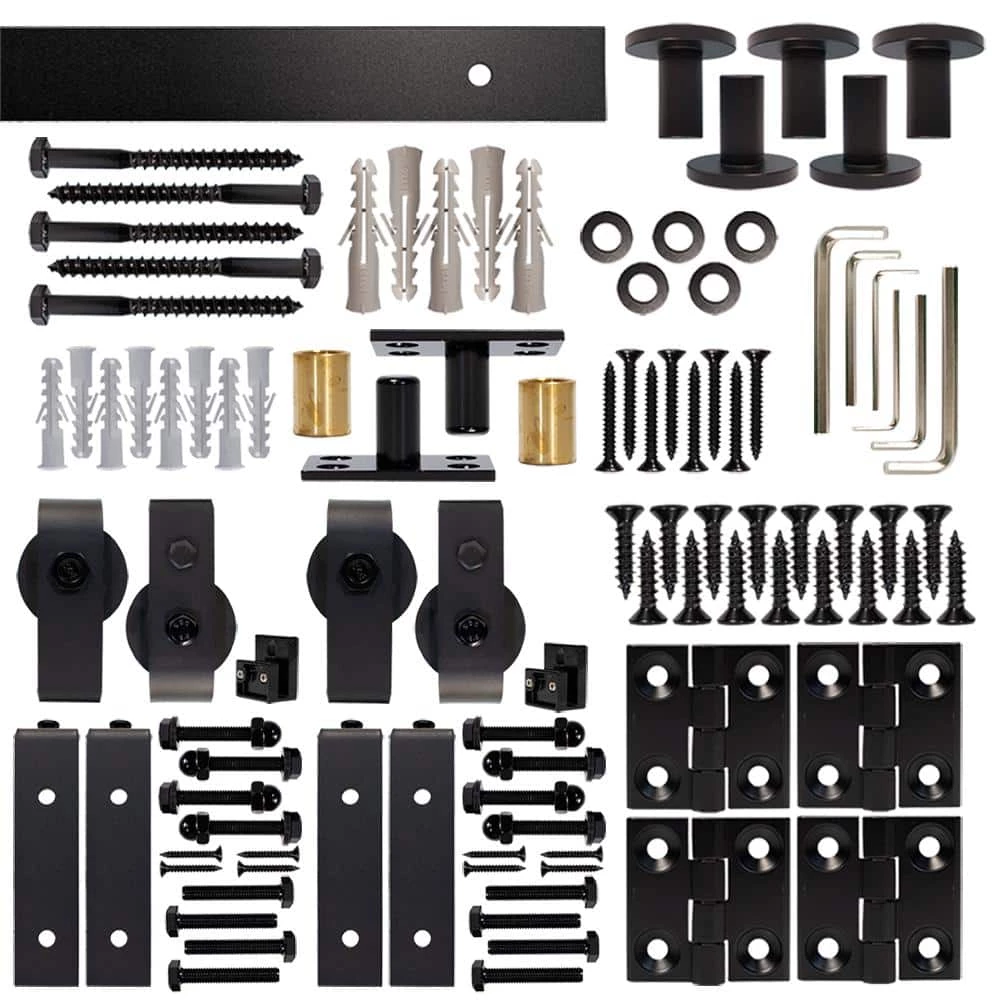

• Hardware includes: 2 adjustable roller, 2 fixed roller, 2 fixed roller lock bracket, one 72 in. rail, 5 rail mount brackets, 4 top connector plates, 2 bottom pivot plate and sleeve, 4 bi-fold door hinges
• Fixed and adjustable roller door strap sizes: 5-1/8 in. H x 1-9/16 in. W; front mount door strap size: 6-1/2 H in. x 1-9/16 in. W; OAH: 11-5/8 in. H x 1-9/16 in. W
• Rail size: 72 in. L x 1-9/16 in. H x 1/4 in. D
• 17-23/32 in. rail hole spacing
• 250 lbs. weight capacity for 4 panel door installation
• To obtain the maximum weight capacity, all rail mounting fasteners must be mounted directly into solid wood
• Do not mount rail spacers directly onto drywall, even if there is solid wood behind, the rail spacers will eventually crush the drywall, potentially causing the rail system to fail, mount rail spacers directly into a sold wood header
• From top of door to center of rail is 1-1/2 in., from center of rail to top of fixed and adjustable roller door strap is 4 in.
• Refer to installation PDF for more detailed information
• Door Hardware Only: Lifestyle images shown are various applications, Doors and Accessories NOT included
